"Flying Wing" Gliders
by Dr. Reimar Horten

(as translated by: Fernando Walter Siarez, Buenos Aires, Argentina)

(The original article was titled  "Planeadores 'Alas Volantes' " by Dr. Reimar Horten, published by Revista Nacional de Aeronautica, October 1953, number 139, pages 46-47; Buenos Aires, Argentina.  We thank them for allowing the translation and publication here for all to share.  The article is being provided in both English and Spanish.)


Because of the flights of the glider I.Ae. 34 "Clen Antu", it has appeared among the Argentine glider people an interest for the flying wings.  That's why I want to inform you about the advantages and disadvantages of this kind of design, contributing in this way with the discussion of the amateurs in the clubs.
     It is not easy to compare the different ways followed in the development, because there are many factors determining the utility of a glider; some can be determined and are then left under the pilot's sense. That's why, any comparison is subjective, although the numerical data are objective.
     Let's start with the visible: elimination of the fuselage and the tail surfaces.  This is an advantage as far as weight and construction cost is concerned, as well as aerodynamic drag.  But on designing without a tail the wing must be given sweep, resulting in a heavier aircraft than the one with a straight wing, thus disappearing a good part of the advantage. The construction cost as a second item, also is increased in the individual constructions, because it is more difficult to align a swept wing than one with a straight leading edge.  Only in a big series with good assembling tools is the measuring avoided, and then the amount of work with the wings is the same.  As in Argentina, most of the sailplanes are built in the clubs [glider clubs -Trans.] and the effort at working on them is the same, let them be conventional gliders or tail-less types; the simpler fuselage in the tailless glider requires a more complicated wing, with the advantage that the material costs are somewhat smaller in the "flying wing".
     The advantage that comes from the smaller air drag takes us to discuss the performance.  To do this, it must be made a difference between the slow flight, that is, with smaller vertical speed, from the fast flight, with a speed corresponding to the best glide ratio and faster.  At first sight, the minimum vertical speed is the same, if we suppose that they have the same span.  And if we also consider the forces, it results that the lower weight is an advantage for the flying wing, to which opposes the fact that the ailerons, acting as elevators and raised on each side, increase the induced drag; with this, the advantages are leveled, especially during the turns. Then no benefit on the minimal vertical speed should be expected.  Gliders with the same span must have the same minimal vertical speed if their development is the same.  Very different are the conditions of fast flight. At the speed corresponding to the best glide ratio, the "flying wing" must be superior in values ranging 8% to 10%; at 150 Km/h, 21% and for higher speeds, its behavior is superior, supposing an aspect ratio of 20 and, as usual, a wing loading of 20 Kg/m2.  For high performance sailplanes, the construction of the "flying wing" has, surely, a great future.
     After considering the flight performance, we will deal with the behavior during flight.  The conventional glider has very similar inertia moments around its three axes, due to its dimensions.  The tailless glider has, around its longitudinal and vertical axes, relatively large inertia moments, while around its transverse axis it is much smaller.  Also the aerodynamic damping of the rotation movements around its transverse axis is, more or less, half the value shown by conventional gliders.  This is, it's characteristic of "flying wing" gliders their movement around the transverse axis being faster.  If a reduced span construction is made, as for example in aerobatic gliders, or with a large sweep as in the motorized aircraft, such mentioned disadvantage does not exist.  For sailplanes of high performance, the short movements the elevator can be retarded in several ways, but the described characteristic will not be able to be suppressed totally.  Still it cannot be stated if this disadvantage is acceptable for the training sailplane, because pilots cannot take attention to the flight behavior of a glider during training period, because they have to concentrate all the attention in themselves.  For the performance pilot the particular properties of an aircraft are not taken into consideration, as far as they are not dangerous, because they satisfy what interests: performance.
     The flight quality that interests from the point of view of safety is the wing fall in slow flight (stall).  This quality only can be obtained by sacrificing performance.  Anyway, in tailless gliders, when both ailerons are raised during a slow flight, the stall is not so large, considering that in fast flight the wing twist is reduced due to the position of the controls, that receive 0 degree angles, or, negative ones.  Also, this effect of wing twist, that varies with the movement of the elevators, is favorable to the "flying wing" in its usage as performance sailplane.  I would like to add that it is valuable for the instrument flight among clouds the fact that turn qualities, stability during it and behavior of wing fall have no defects; to this corresponds that the moments on the vertical axis originated by the aileron angles - that depend on the lift coefficient in gliders with tail- can be made almost independently from the lift coefficient in the "flying wings" due to the movement of ailerons on both sides, acting also as elevators.  Another comparison point between both kinds of gliders is pilot's visibility.  This must be appreciated simultaneously with the protection against accidents, because a better visibility always represents a bigger risk.  We have the following circumstances: the conventional glider gives the pilot very good visibility, but offers little protection.  The "flying wing", in the case of I.Ae. 34, offers the pilot, due to the large wing root, a smaller visibility downwards and sideward; but, on the contrary, protects him at a maximum in case of an accident, due to the seat location, behind the main spar.  If pilot is located in a laying position with the head forward as it is usual in "flying wing" performance gliders, a maximum pilot visibility is obtained, also during automobile or windlass tow, but his head is more exposed - as much as if he was seated, - due to its proximity to the fore part of the glider.  It can be, and must be, reduced such danger with the metallic construction of the fuselage or something similar, as the case indicates.
     Continuing with the comparison between conventional gliders and "flying wings", I have to talk about the landing gear arrangement.  It is not a wheels or skid question here, considering that both can be used in the two aircraft types, but the gear arrangement in itself.  The tailed glider has enough wing height above ground, and the fuselage can be given a fixed skid, obtaining in this way a simple in-expensive solution.  The tailless glider cannot be given a standard skid because it would result in a very small separation between ground and wing, having to use a landing gear that, logically, will have to be retractable.  This solution is complicated and expensive, resulting the "flying wing" affected in this sense.  With a pilot in a "prone" position (laying) the back skid part can be put in a body housing the pilot's legs, limiting the retractable part only to the fore skid.  With this arrangement the landing gear question can also be solved for the "flying wings" in a relatively economic way.
     It is possible to go on with comparisons and always new arguments could be found both for and against any construction type.  With exception to special uses, I estimate as a result of these comparisons that the "flying wing" with the pilot in "prone" position has advantages as a performance sailplane, but as training glider it cannot still be appreciated, at the actual development status. If the "flying wing" can have success as instruction craft, due to its low wing loading, this will only be determined when enough information on this field is gathered.
    That performance sailplane flight has a future, it depends greatly on the financial situation of the clubs.  If we allow the president of a Club to choose between three "babies" or a performance sailplane, of about the same cost, he will decide for the three training gliders and will offer his members greater possibilities of flight than with a high performance sailplane.  A performance pilot, will choose the contrary, because for his experience he knows that in a descending currents zone or during a temporary instability, low performance gliders will have to land, while on many cases a high performance sailplane gets through that zones and can fly longer distances.  Higher performances cannot be obtained only on the pilot will, because motorless flight is so technical that more perfect craft are also needed, that bring higher costs.  If we desire performance sailplane flight, we have to develop the fast flight qualities of the gliders.  In all of today's contests triangle flights are required, speed flights, etc, that, apart from the wave flights, require perfection.
     For that uses it is worth developing "flying wing" high sailplanes.

Illustrations included (in order):

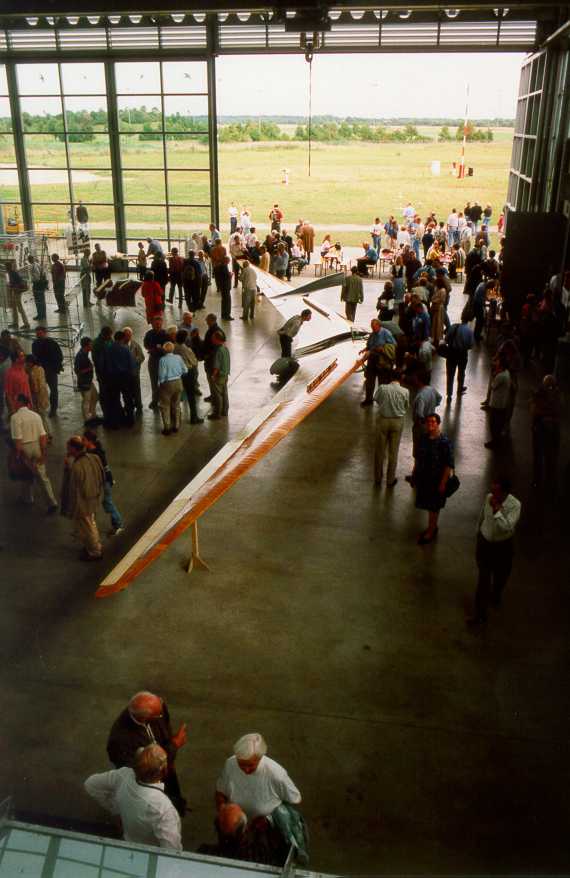

     -Horten IV sailplane, with "prone" (laying) position pilot.

     -Horten III glider, for pilot training, also with "prone" position.

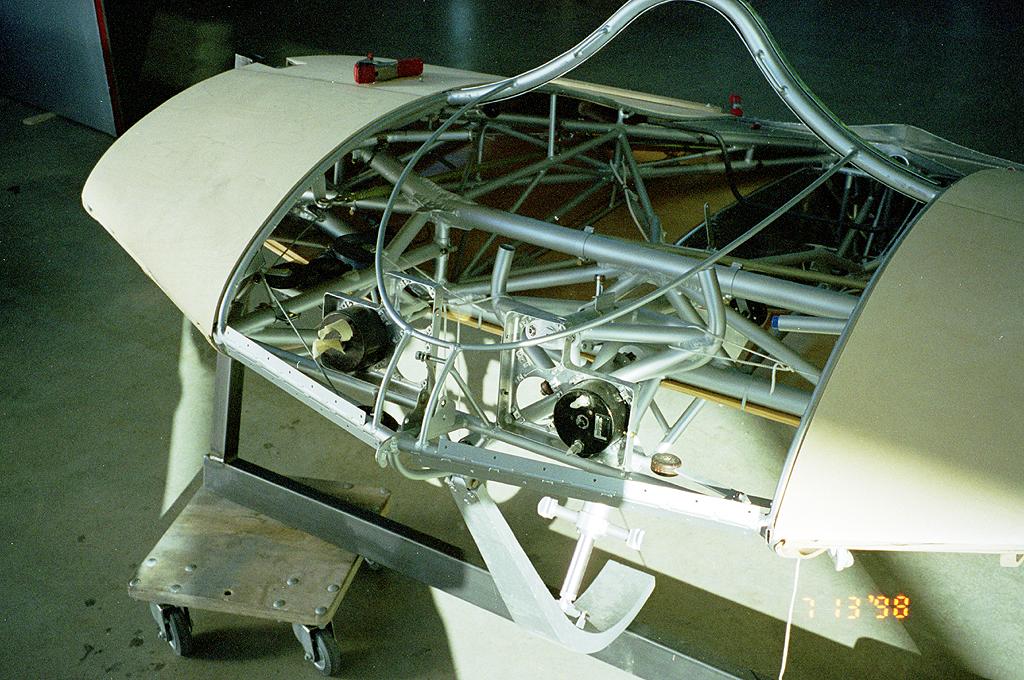

      -Horten IV sailplane; steel tube center section. It can be seen the
      control steering wheel and oxygen equipment.

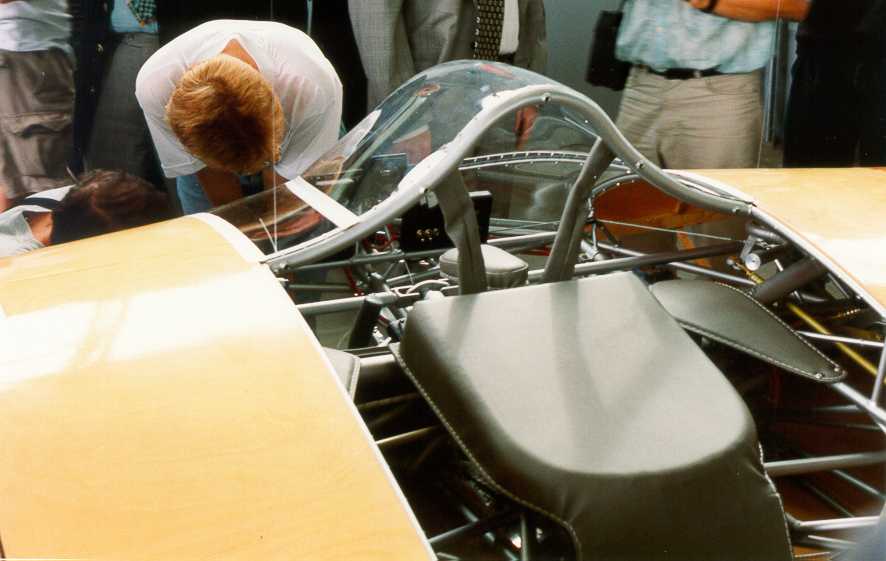

      -Structure and pilot cockpit arrangement in Horten IV sailplane.
