By Thomas Bircher (bitanx@bluewin.ch) |
Note: The expanded pictures
range
in size from 52 kb to 68 kb.

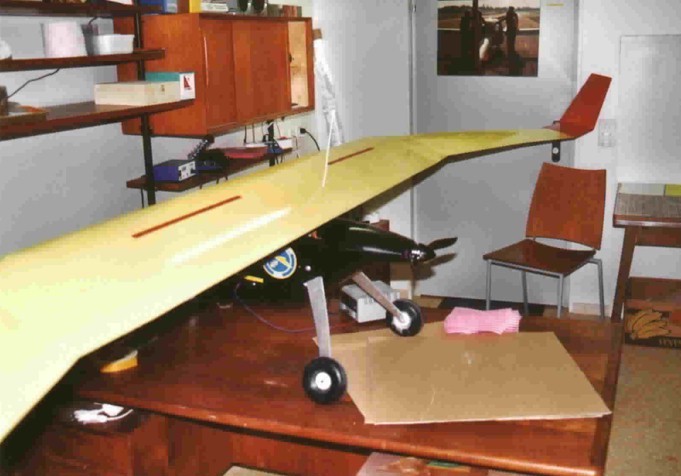

This is a view of the model showing an idea of the full span and the
sweep
of the outer panel. The red lines on the top of the wing are the
spoilers.

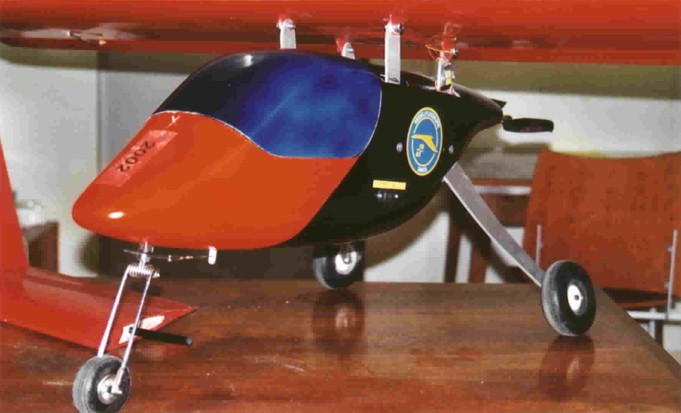

This is a front view giving you a good idea of the stance of the
aircraft
on the ground. You can also see the adjustment capabilities for
the
wing to facilitate testing.
Here is another rear shot. You can see the right winglet (red) on
the table.
A good shot of the center section root area where the outer panel
attaches.
The yellow vertical piece is the left winglet sitting on the table.

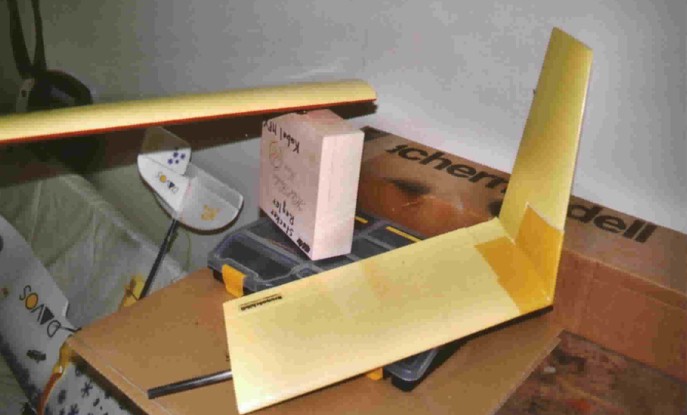

Here is a good shot of a winglet showing the relative angel to the main
wing.

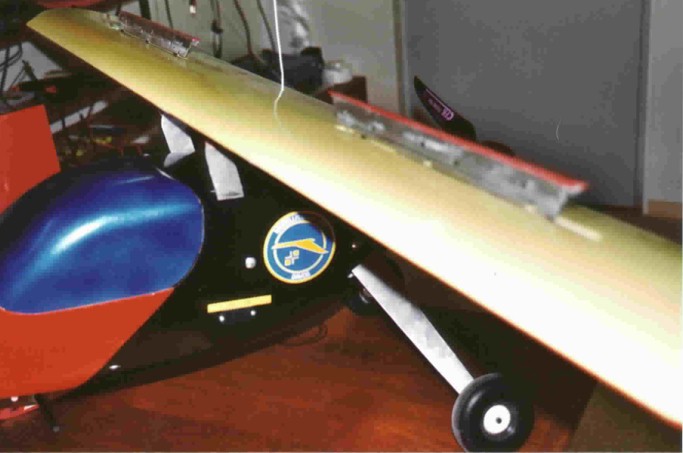

Shot showing the spoilers deployed.
|
